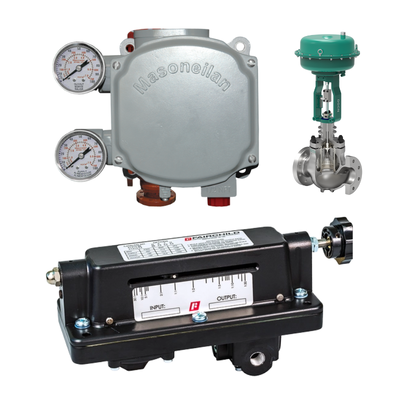

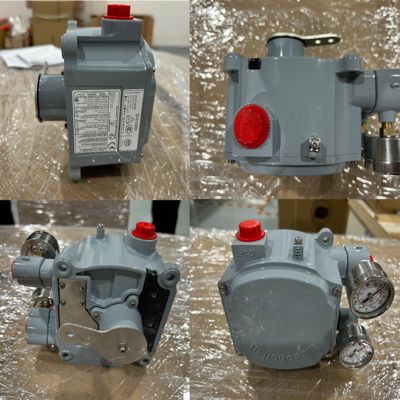

Product Description:
The Masoneilan SVI series valve positioners are advanced electro-pneumatic devices created specifically for use with pneumatic control valves within the realm of industrial automation. These intelligent positioners receive input signals in the form of 4-20mA analog signals or various digital communication protocols, including HART and FOUNDATION Fieldbus. This allows them to accurately adjust valve positions to maintain optimal control.
By ensuring precise valve positioning, the SVI series helps achieve stable regulation of critical process parameters such as flow rate, pressure levels, and temperature. This precise control is essential for maintaining the safety, efficiency, and reliability of industrial processes.
The design of the Masoneilan SVI series incorporates high-precision sensors combined with powerful microprocessors and advanced adaptive control algorithms. These features enable the devices to perform exceptionally well even under complex and demanding operating conditions. Furthermore, the series supports remote monitoring and diagnostic capabilities, which facilitate proactive maintenance and enhance overall system performance.
Features:
High Precision Control
The device offers exceptional positioning accuracy within ±0.1% of the full scale. Additionally, it maintains hysteresis and deadband values at or below ±0.3%, guaranteeing stable and reliable flow regulation throughout its operation.
Smart Communication
It supports the HART communication protocol, with optional versions 5 and 7 available. This compatibility ensures seamless integration with DCS and PLC systems, allowing users to remotely configure parameters, access diagnostic data, and perform firmware updates using the ValVue software platform.
Modular Design
The product features a modular design that enables quick replacement of key components, such as circuit boards and sensors. This approach effectively reduces maintenance costs and downtime. Furthermore, the inclusion of a "one-touch tuning" feature facilitates rapid adjustments for enhanced operational efficiency.
Environmental Adaptability
Designed to withstand harsh industrial environments, the device has an IP66/NEMA 4X protection rating. It operates reliably within a wide temperature range of -40°C to +85°C and tolerates humidity levels from 10% to 95% RH, provided there is no condensation.
Explosion-Proof Certification
The product is certified by renowned safety standards including ATEX, IECEx, FM, and CSA. It supports explosion-proof designs (Ex d IIC T6) as well as intrinsically safe configurations (Ex ia IIC T4), making it suitable for use in hazardous environments requiring stringent safety measures.
Integrated Pressure Gauge

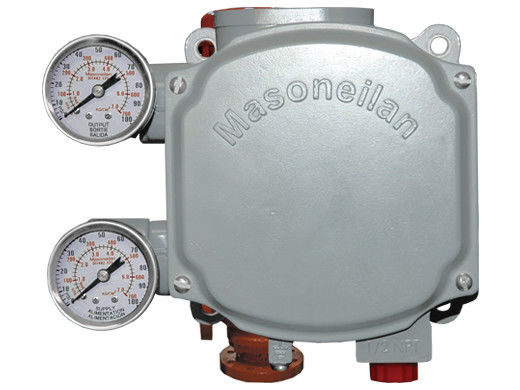

Certain models, such as the SVi1000/PR/G/IM, come equipped with integrated pressure gauges. These gauges provide direct readings of input and output air pressure, simplifying the process of field commissioning and enhancing user convenience.
Technical Parameters:
| Linearity |
±0.5% To ±2.0% Of Span |
| Ambient Temperature Range |
-40°C To +85°C (-40°F To +185°F) Standard |
| Hysteresis |
Typically < 0.3% Of Span |
| Type |
Electro-Pneumatic / Pneumatic Valve Positioner |
| Input Signal (Pneumatic) |
3-15 Psi (0.2-1.0 Bar) |
| Enclosure Rating |
Minimum IP66 / NEMA 4X; Explosion-proof Options Available |
| Mounting |
Direct Mount On Linear (stem) Or Rotary (ISO 5211) Actuators |
| Air Consumption (Steady State) |
Low, Typically < 0.1 SCFM |
| Hazardous Area Approvals |
ATEX, IECEx, FM, CSA (for Certified Models) |
| Output Air Pressure |
0 To 100% Of Supply Pressure |
Applications:
Applications
Petrochemical Industry
In the petrochemical sector, these systems are applied in refinery reactors and natural gas pipelines. They enable accurate flow control of high-temperature and high-pressure substances such as crude oil and steam, even in hazardous environments. This precise regulation ensures safety and efficiency during processing.
Power & Energy
Within the power and energy industry, these devices manage valve operations in steam turbines, condensers, and boiler systems. Their ability to function effectively under conditions of high temperature and vibrations contributes significantly to enhancing overall power generation efficiency.
Water Treatment
They play a vital role in controlling large-diameter valves used in municipal water supply networks and wastewater treatment facilities. By optimizing water flow and the dosing of chemicals, they help maintain the quality and safety of water treatment processes.
Pharmaceutical & Food Processing
Designed to meet strict hygienic standards, these valve control systems are suitable for sterile applications in cleanroom environments. They ensure that production remains safe and contaminant-free, adhering to stringent cleanliness requirements in pharmaceutical and food processing industries.
Metallurgical Industry
In metallurgy, these systems provide precise control over atmosphere regulation and fluid transfer during smelting operations. Their capability to operate continuously under extreme temperatures and pressures supports efficient and uninterrupted metallurgical processes.
Support and Services:
Our Valve Accessories product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We offer expert guidance on installation, operation, and maintenance to help you maximize the lifespan and efficiency of your valve accessories.
Our technical support team is available to assist with troubleshooting and resolving any issues promptly. We provide detailed product documentation, including specifications, installation manuals, and maintenance guides, to help you understand and utilize the product effectively.
In addition, we offer customized training sessions and on-site support to address your specific application needs and challenges. Our commitment is to deliver reliable solutions and exceptional service throughout the lifecycle of your valve accessories.
For warranty information and service requests, please refer to the product documentation or visit our official website for further details.
Packing and Shipping:
All Valve Accessories are carefully packaged to ensure maximum protection during transit. Each product is securely wrapped in protective materials and placed in a sturdy, appropriately sized box to prevent damage. Packaging is designed to withstand handling and environmental factors, maintaining product integrity until delivery.
For shipping, we partner with reliable carriers to provide prompt and safe delivery services. Each shipment is tracked and documented, ensuring timely arrival and allowing customers to monitor their orders. Special handling instructions are followed for fragile or sensitive components to guarantee they reach you in perfect condition.
