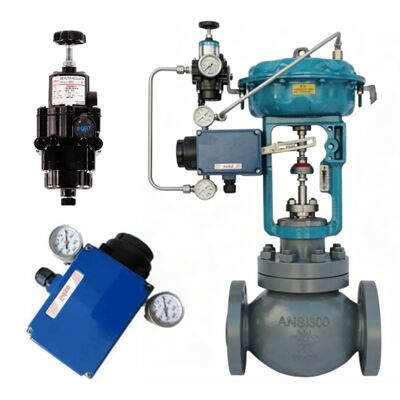

Name: Wuzhong Quick Change Single Seat Control Valve ATS APS with AZBIL AVP300 Positioner Rotork YT200 Regulator
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: ATS/APS
Price: 950.00 USD
Availability: InStock

Características Galeria Descrição de produto Avaliações e Comentários Peça umas citações

Características

Especificações

Tipo de válvula: Válvula de controle do único assento

Padrão da conexão: Classe ANSI 150/300/600

Material do corpo: WCB / CF8 / CF8M / Outra liga de aço

Tamanho nominal: DN25 a DN200 (1" a 8")

Característica de fluxo: Porcentagem Linear / Igual / Abertura Rápida

Pressão Operacional: Até ANSI Classe 300 (PN5.0MPa)

Faixa de temperatura: -45°C a +566°C com tipos de tampa opcionais

Cenário de aplicação: Processo Industrial Petroquímico de Petróleo e Gás

Informação básica

Lugar de origem: China

Marca: WUZHONG

Número do modelo: ATS/APS

Condições de Pagamento e Envio

Detalhes da embalagem: embalagem de caixa/caixa de madeira

Tempo de entrega: 6-8 semanas

Termos de pagamento: T/T

Habilidade da fonte: 800 grupos pelo ano

Galeria

Wuzhong Quick Change Single Seat Control Valve ATS APS with AZBIL AVP300 Positioner Rotork YT200 Regulator

Descrição de produto

Wuzhong Quick Change Single Seat Control Valve ATS/APS
with AZBIL AVP300 Positioner & Rotork YT200 Filter Regulator

Product Overview

The Wuzhong ATS/APS Quick Change Single Seat Control Valve is a high-performance pneumatic control valve designed for precise flow regulation in industrial processes. Equipped with the AZBIL AVP300 smart positioner and Rotork YT200 filter regulator, this valve delivers reliable, accurate control while minimizing maintenance downtime. Its quick-change trim design allows for fast on-site repair without removing the entire valve from the pipeline, making it ideal for continuous operation environments.

Features

Quick change trim design for fast and easy maintenance
High precision flow control with AZBIL AVP300 smart positioner
Stable air supply with Rotork YT200 filter regulator
Excellent shut-off performance and low leakage rate
Wide operating pressure and temperature range
Compact and robust construction for long service life
Linear or equal percentage flow characteristics available
Low noise and anti-cavitation options on request

Technical Specifications

Item	Specification
Valve Type	Single Seat Control Valve
Model Series	ATS / APS
Nominal Size	DN15 ~ DN200 (1/2" ~ 8")
Pressure Rating	ANSI 150 ~ 600 (PN1.6 ~ 10.0 MPa)
Temperature Range	-45°C ~ +566°C (with optional bonnet designs)
Positioner	AZBIL AVP300 Smart Valve Positioner
Filter Regulator	Rotork YT200 Air Filter Regulator
Actuator Type	Pneumatic Diaphragm Actuator
Control Signal	4-20 mA DC
Body Material	WCB, CF8, CF8M, or custom alloy

Applications

This control valve is widely used in the following industries and processes:

Petrochemical and oil refining
Power generation plants
Natural gas processing and transmission
Chemical and pharmaceutical manufacturing
Water treatment and environmental engineering
Industrial boiler and HVAC systems
Food and beverage processing

FAQ

Q: Can the valve be used for high-temperature steam applications?

A: Yes, with an extended bonnet design, it can handle temperatures up to +566°C, making it suitable for high-temperature steam and heat transfer fluids.

Q: Is the AZBIL AVP300 positioner compatible with HART communication?

A: Yes, the AVP300 supports HART protocol for remote configuration, diagnostics, and calibration.

Q: Can I replace the trim without removing the valve from the pipeline?

A: Yes, the ATS/APS series features a quick-change trim design that allows on-site trim replacement without full valve removal.

Q: What certifications does the valve have?

A: The valve complies with ISO 9001, ASME B16.5, and other relevant industrial standards. Custom certifications such as SIL are available on request.
