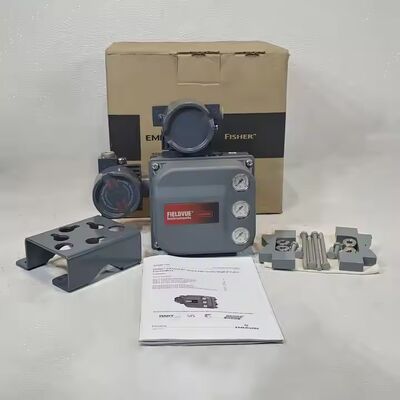

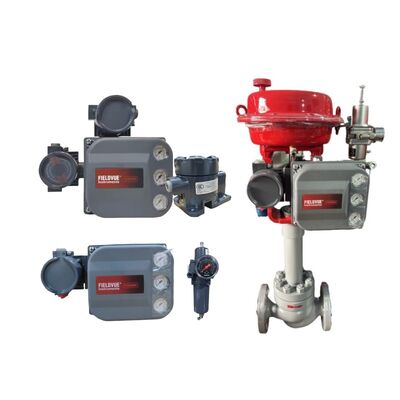

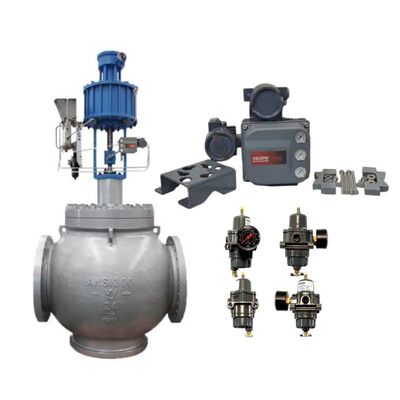

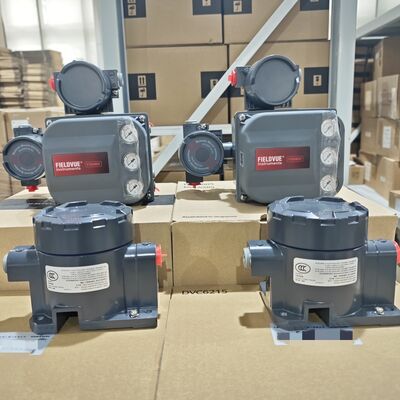

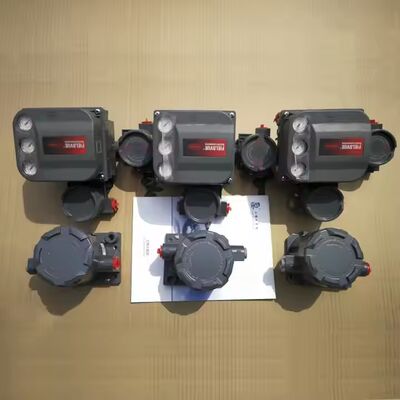

Fisher DVC6205 DVC6215 IP66 Remote Travel Sensor Split Type Digital Valve Positioner

The Fisher DVC6205 base unit with DVC6215 remote feedback unit is the remote-mount version of the FIELDVUE DVC6200 series digital valve controller. It is designed for applications where the electronics must be separated from the valve due to high vibration, extreme temperatures, or difficult access. The linkage-less, non-contact travel sensor (DVC6215) mounts directly on the valve or actuator, while the DVC6205 base unit is mounted remotely on a pipe stand or wall. It provides accurate positioning with HART communication and advanced diagnostics.

• High-vibration applications
• High-temperature valve installations
• Difficult-to-access valves (elevated or confined spaces)
• Refineries, petrochemical and power plants
• Any process where electronics need separation from the actuator

• Problem: Extreme heat or vibration damaging electronics → Solution: Remote mounting keeps sensitive components away from the valve
• Problem: Long pneumatic tubing causing lag → Solution: Tested performance up to 91 m (300 ft) with minimal degradation
• Problem: Wiring issues in remote setup → Solution: Use 4-conductor shielded cable in dedicated conduit

• Older Fisher DVC6000 remote mount versions
• Standard integral-mount DVC6200 (when remote mounting is not needed)

• Genuine Emerson Fisher product with factory calibration certificate
• Local technical support for remote mount installation and setup
• Competitive pricing with full warranty
• Fast spare parts availability for DVC6205 and DVC6215

• Standard DVC6205 / DVC6215 configurations: 6–10 weeks typical lead time
• Common stock units: 4–8 weeks (subject to availability)

Please provide:

• Valve / actuator type (linear or rotary) and travel range
• Process conditions (temperature, vibration level)
• Required mounting distance between base unit and feedback unit
• Communication protocol (HART)
• Quantity & target delivery date
