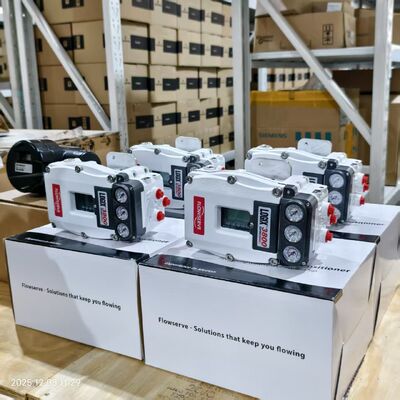

Chinese Control Ball Valve with Flowserve Valve Positoner Logix 3800 3400MD 3200MD 520MD 510SI 420 Asco 342A Filter Regulator

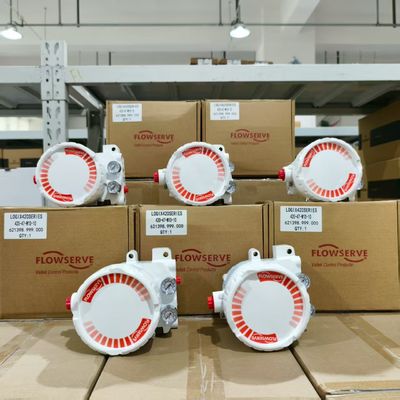

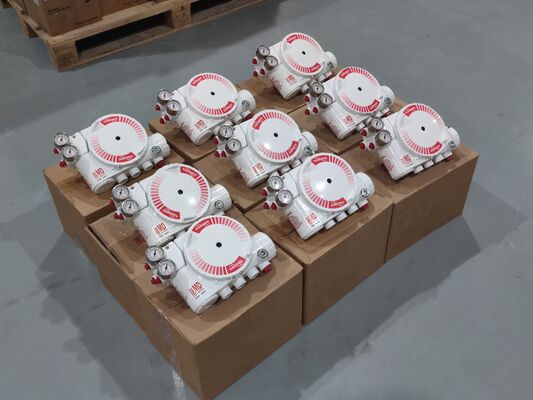

The Flowserve Logix 420 Digital Positioner is a user-friendly, high-performance solution for precise valve control in industrial automation. Leveraging state-of-the-art piezo technology and HART communication, this positioner delivers exceptional reliability and accuracy. Designed for ease of use, it features intuitive configuration via local buttons, HART handheld, or ValveSight DTM software, making it ideal for process industries seeking robust and efficient valve management. Its compact design and rugged construction ensure dependable performance in challenging environments, enhancing operational efficiency and reducing downtime.

Flowserve Logix® 3200MD / 3200MD+ Digital Positioner
The Flowserve Logix® 3200MD Series is a family of two-wire, 4-20 mA input digital valve positioners that utilize the HART communication protocol . Employing state-of-the-art piezo technology, these positioners are designed to deliver superior performance and reliability for the precise control of both double- and single-acting actuators with linear or rotary mountings .

The Logix 3200MD+ is the enhanced version of the series, building upon the core features with advanced diagnostics and broader HART compatibility .

Key Features & Benefits
Easy Configuration and Calibration: Setup is simplified through a local user interface featuring status LEDs, DIP switches, and calibration buttons. Configuration can be done locally, via a HART handheld communicator, or through Flowserve's SoftTools software (or ValveSight™ DTM for the 3200MD+) .

HART Communication: The 3200MD supports HART 5 protocol . The 3200MD+ enhances this by supporting HART 5, 6, and 7, enabling two-way remote digital communication for configuration, monitoring, and diagnostics over the standard 4-20 mA signal wires .

Advanced Diagnostics:

The base 3200MD offers standard self-diagnostics.

The 3200MD+ is a significant upgrade, equipped with over 100 helpful warning alarms that can alert users to potential failures in the valve, actuator, or positioner itself, helping to prevent plant upsets .

When used with ValveSight™ DTM Software, a comprehensive suite of diagnostic tools becomes available to quickly diagnose problems, monitor valve health, and perform offline tests .

The Flowserve Logix® 520MD Series is a family of high-performance, two-wire digital valve positioners that utilize the HART communication protocol. Designed to provide precise and reliable control for both linear and rotary pneumatic actuators, these positioners are engineered to withstand severe industrial environments .

The Logix 520MD+ is the enhanced version of the series, building upon the core features with advanced diagnostics and improved performance

PMV D3 Digital Positioner

The Flowserve PMV D3 is a digital valve positioner that operates on the FOUNDATION Fieldbus protocol, offering unmatched performance and reliability in all areas of control and automation . Its modular, scalable design allows users to select options best suited for specific applications

PMV P5 / EP5 Positioners

The PMV P5 (Pneumatic) and PMV EP5 (Electro-Pneumatic) are analog positioners known for their robust, compact design and reliable performance in diverse environments . The EP5 is adapted from the P5, adding an I/P (current-to-pressure) converter to accept a standard 4-20 mA input signal

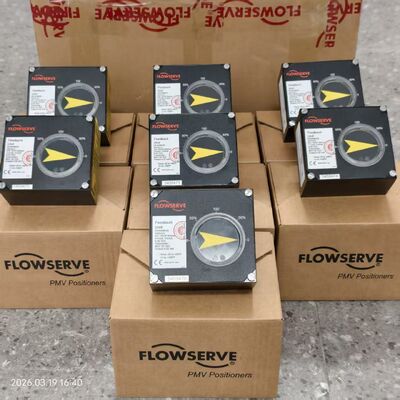

F5 Feedback Unit (Switch Box)

The PMV F5 is a feedback unit uniquely designed to mount directly on top of the PMV P5, EP5, or P-2000 positioners with a minimum of parts, requiring no additional brackets or linkage . It can also be mounted directly on actuators using an additional mounting kit

• Advanced Piezo Technology: Enables precise and responsive valve positioning for optimal process control.
• Easy Configuration: Supports setup via local LCD and buttons, HART handheld, or ValveSight DTM software for quick commissioning.
• Reliable Performance: Rugged design ensures consistent operation in harsh industrial conditions.
• HART Communication: Facilitates seamless integration with control systems for real-time monitoring and diagnostics.
• Quick Calibration: Innovative Quick-Cal feature simplifies setup, reducing installation time.
• Compact and Lightweight: Space-saving design allows easy integration into various valve systems.
• Explosion-Proof Design: Certified for hazardous locations, ensuring safe operation in volatile environments.

The Flowserve Logix 420 is designed for a wide range of industrial applications, ensuring precise valve control:

• Oil and Gas: Manages valve positioning in upstream, midstream, and downstream processes.
• Chemical Processing: Ensures accurate control in chemical reactors and mixing systems.
• Power Generation: Optimizes valve performance in steam and gas turbine systems.
• Water Treatment: Enhances flow control in water and wastewater treatment facilities.
• Pulp and Paper: Supports precise valve operation in pulp processing and paper production.

For more information about the Flowserve Logix 420, pricing, or to request a demo, contact our team:

• Email: cy@gongboshi.com
• Phone: +8618621383639
• Website: https://www.shgongboshi.com/

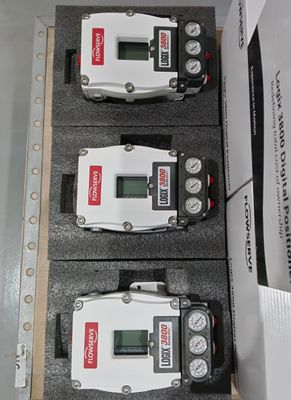

• Logix 3800 Digital Positioner: Advanced diagnostics and versatile communication options for demanding applications.
• Logix 520MD Series: Multi-variable gain tuning for precise actuator control.
• Logix 510si Series: Single-acting positioner with user-friendly setup and diagnostics.
• Valtek GS Valve: General-service valve compatible with Logix 420 for reliable control.
