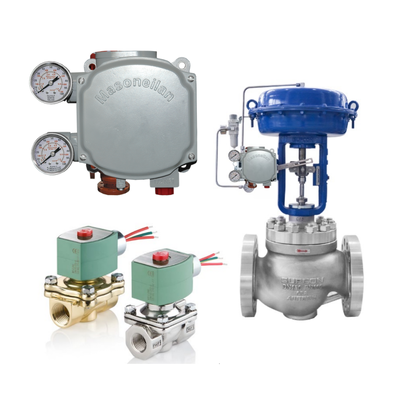

Masoneilan SVI1000 Intelligent Digital Valve Positioner HART Protocol Rev 5/7 with ASCO Solenoid Valves

The Masoneilan SVI1000 is a user-friendly digital valve positioner, engineered for single-acting pneumatic valves with a simple 4-20 mA HART interface. Featuring a one-button-one-function local interface and magnetic sensing technology, it simplifies commissioning and operation while providing accurate positioning. Its compact metal housing and universal design make it easy to install on linear or rotary valves, reducing setup time and operational complexity.

• Intuitive "one-button-one-function" local pushbutton/LED interface for quick calibration and tuning.
• Universal design compatible with linear and rotary valves, no hardware changes needed.
• HART 5/7 compliant for local or remote setup via handhelds or DCS software.
• Powerful DTM with user-friendly interface for commissioning, diagnostics, and maintenance.
• Integrated position feedback and limit switches to reduce component count.
• Easy electrical connection with screw-type terminals and 1/2 NPT fitting.

• Quick retrofits in manufacturing plants for simplified valve upgrades.
• Food and beverage processes needing easy calibration.
• Water treatment facilities for user-friendly operation.
• Pharmaceutical production with straightforward diagnostics.
• General automation where fast commissioning reduces labor costs.

• How easy is local setup? Use the one-button interface for stops, air action, autotuning, and tuning sets.
• What tools are needed for commissioning? Local pushbuttons/LEDs or HART handheld; no special equipment required.
• Can it integrate with my DCS? Yes, via full DD, eDDL, or DTM support for major systems.
• How to perform diagnostics? Access cycle counts, step/ramp tests via interface or software.
• Is it plug-and-play? Universal design allows quick mounting without modifications.
