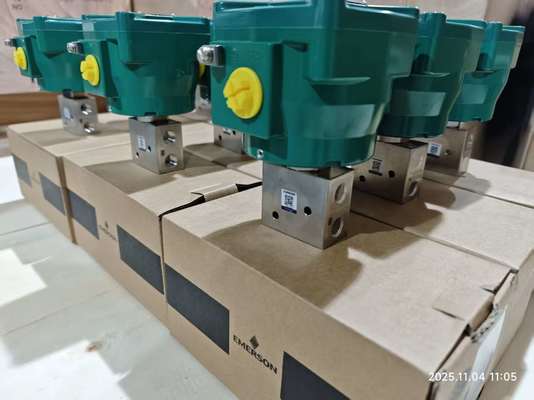

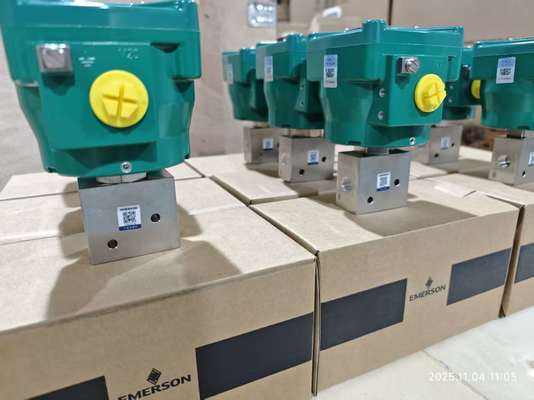

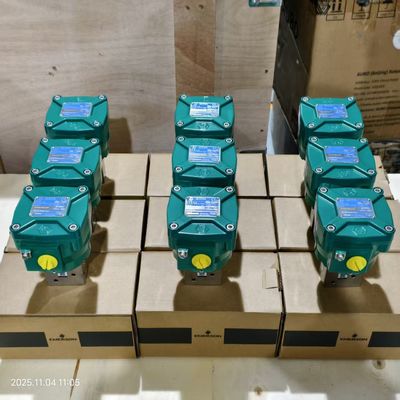

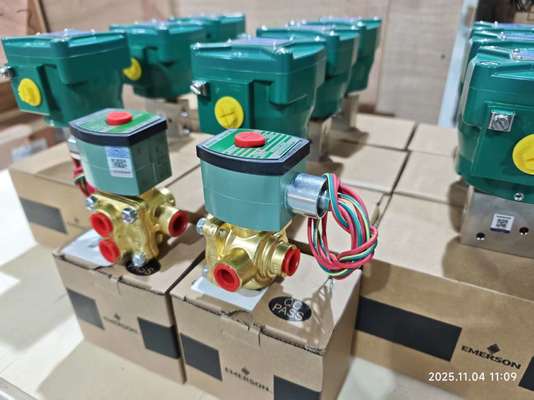

ASCO 327 / 8327 3/2-Way Solenoid Valve
Overview
The ASCO 327 / 8327 3/2-Way Solenoid Valve by Emerson is a robust, high-performance valve designed for reliable control of air and inert gases in industrial automation systems. Known for its direct-acting operation and compact size, this valve provides excellent precision, fast response, and long service life.
The ASCO 327 Series includes both the 8327 explosion-proof model and the 327 general-purpose version, making it suitable for a wide range of standard and hazardous applications.
Key Features and Benefits
3/2-way configuration for flexible pneumatic control
Direct-acting design ensures fast switching and reliable operation
Suitable for air, inert gases, and light oil media
Compact body for easy installation in space-limited systems
Available in brass or stainless steel for corrosion resistance
Low power consumption and fast response time
Explosion-proof (8327) and intrinsically safe versions available
Certified by ATEX, UL, CSA, and IECEx
Technical Specifications
| Parameter |
Specification |
| Model |
ASCO 327 / 8327 Series |
| Type |
3/2-Way Direct-Acting Solenoid Valve |
| Operation |
Normally Closed or Normally Open |
| Orifice Size |
1.6 mm to 5.0 mm |
| Pressure Range |
0 to 10 bar |
| Body Material |
Brass or Stainless Steel |
| Seal Material |
NBR, EPDM, or FKM |
| Voltage Options |
24V DC, 110V AC, 230V AC |
| Port Size |
1/8 inch or 1/4 inch NPT |
| Temperature Range |
-20°C to +80°C |
| Flow Coefficient (Cv) |
Up to 0.6 |
| Mounting Position |
Any position |
| Electrical Connection |
DIN plug or conduit hub |
| Certifications |
ATEX, UL, CSA, IECEx |
Working Principle
The ASCO 327 / 8327 Solenoid Valve operates using an electromagnetic coil that actuates a plunger to open or close internal flow passages. Its 3/2-way configuration allows switching between two output ports, making it ideal for controlling single-acting actuators, pneumatic cylinders, or pilot valves.
The direct-acting mechanism ensures consistent operation regardless of system pressure.
Typical Applications
Pneumatic and automation systems
Oil and gas control systems
Power generation equipment
Chemical and process industries
Machine tools and packaging lines
Food and beverage automation
Valve actuation and air control panels
Product Advantages
The ASCO 327 / 8327 Series combines high performance, safety, and durability.
Excellent for both general-purpose and hazardous applications
Fast actuation and long coil life
Explosion-proof variants suitable for ATEX and UL Class I Div 1 zones
Reliable sealing for leak-free operation
Backed by Emerson’s global quality and support network
Why Choose Dr. Industry Group Co., Ltd.
Genuine ASCO valves with verified quality and certifications
Large stock of ASCO 327 / 8327 valves ready for shipment
Expert technical support for voltage and material selection
Long-term export experience to Southeast Asia, the Middle East, and Central Asia

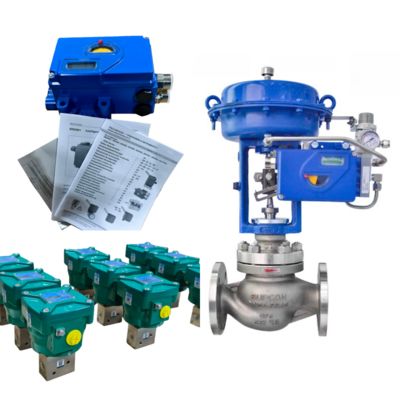

Comprehensive automation solutions including solenoid valves, actuators, and valve positioners
FAQ
Q1. What is the difference between ASCO 327 and 8327 models?
The 8327 is the explosion-proof version of the 327, designed for use in hazardous or classified areas.
Q2. Can it be used for gas or vacuum applications?
Yes, the ASCO 327 / 8327 supports air, inert gases, and vacuum service.
Q3. What are the available coil voltage options?
Standard coils include 24V DC, 110V AC, and 230V AC; others available upon request.
