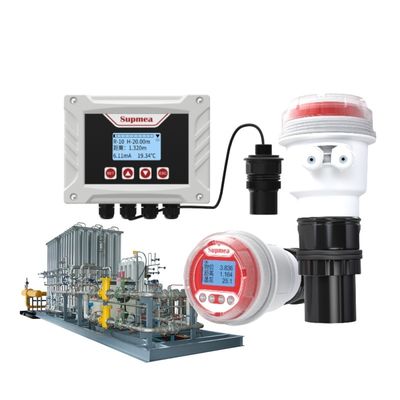

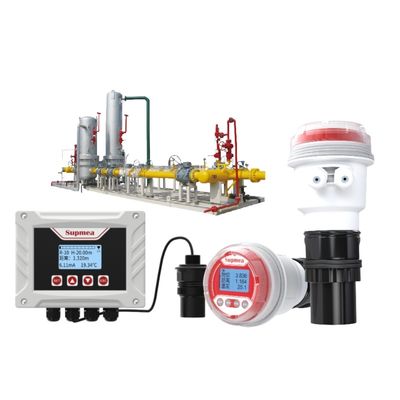

Supmea WSU200 and SUP-ULS-B Ultrasonic Level Meters
Product Overview
The Supmea WSU200 and SUP-ULS-B Ultrasonic Level Meters are advanced, non-contact solutions for continuous level measurement in tanks, silos, and open channels. Utilizing ultrasonic pulse-echo technology, these meters emit sound waves to detect level changes with high precision, making them ideal for liquids, slurries, and solids. The WSU200 is a wall-mounted transmitter with a 15m range, while the SUP-ULS-B offers an integrated design for up to 20m detection. With IP67 protection and versatile outputs, they ensure reliable performance in harsh environments, supporting industries like water treatment, chemical processing, and mining with minimal maintenance and easy installation.
Key Features
- Non-Contact Measurement: Ultrasonic technology avoids direct contact, reducing contamination and wear.
- High Accuracy: ±0.5% of full scale for reliable level data.
- Wide Range Options: WSU200 up to 15m, SUP-ULS-B up to 20m for diverse tank sizes.
- Robust Design: IP67 enclosure withstands dust, water, and corrosive conditions.
- Multiple Outputs: 4-20 mA, RS485 (Modbus RTU), relay alarms for system integration.
- Easy Calibration: Automatic temperature compensation and user-friendly setup.
- Versatile Medium Compatibility: Measures liquids, slurries, and solids with low density requirements.
- Low Power Consumption: Operates on 12-24 VDC for energy efficiency.
- Remote Monitoring: Optional GPRS for wireless data transmission.
- Anti-Interference: Advanced algorithms filter noise from agitation or foam.
Technical Specifications
| Parameter |
WSU200 |
SUP-ULS-B |
| Measuring Principle |
Ultrasonic Pulse-Echo |
Ultrasonic Pulse-Echo |
| Measuring Range |
0.2–15 m |
0.2–20 m |
| Accuracy |
±0.5% of full scale |
±0.5% of full scale |
| Resolution |
1 mm |
1 mm |
| Blind Zone |
0.2 m |
0.2 m |
| Output Signals |
4-20 mA, RS485 (Modbus RTU), Relay |
4-20 mA, RS485 (Modbus RTU), Relay |
| Power Supply |
12–24 VDC |
12–24 VDC |
| Temperature Range |
Probe: -40°C to +80°C; Ambient: -20°C to +60°C |
Probe: -40°C to +80°C; Ambient: -20°C to +60°C |
| Medium Temperature |
-40°C to +80°C |
-40°C to +80°C |
| Protection Rating |
IP67 |
IP67 |
| Certifications |
CE, RoHS |
CE, RoHS |
| Beam Angle |
8° |
8° |
| Data Storage |
Up to 1000 records |
Up to 1000 records |
Applications
The Supmea WSU200 and SUP-ULS-B Ultrasonic Level Meters are designed for non-contact level detection in industrial settings:
- Water and Wastewater: Monitors tank levels in treatment plants and reservoirs.
- Chemical Storage: Tracks corrosive liquids in storage tanks and silos.
- Food and Beverage: Hygienic level measurement in mixing and holding vessels.
- Mining: Measures slurry levels in ore processing tanks.
- Power Generation: Controls water levels in cooling towers and boilers.
Frequently Asked Questions
How do these ultrasonic meters work?
They emit ultrasonic pulses that reflect off the surface, calculating level based on echo time.
What is the blind zone, and how does it affect measurement?
The 0.2m blind zone is the distance near the sensor where measurement is unreliable; suitable for most tank heights.
Are they suitable for solids?
Yes, the SUP-ULS-B model handles solids and powders in silos.
What outputs facilitate integration?
4-20 mA, RS485 (Modbus), and relay alarms connect to PLCs and DCS systems.
Can they operate in humid or dusty environments?
Yes, IP67 protection ensures reliability in harsh conditions.
