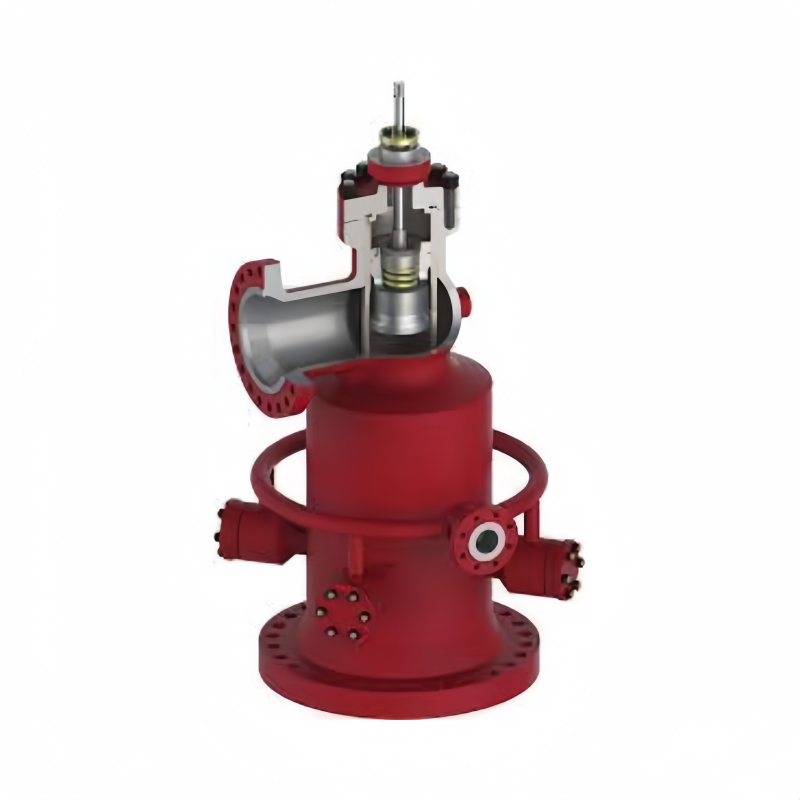

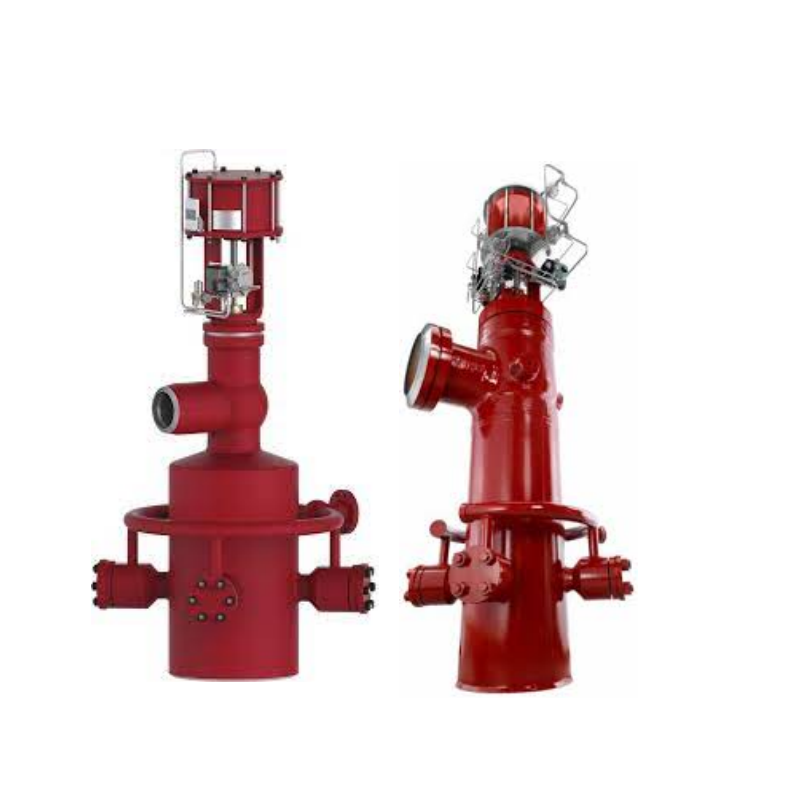

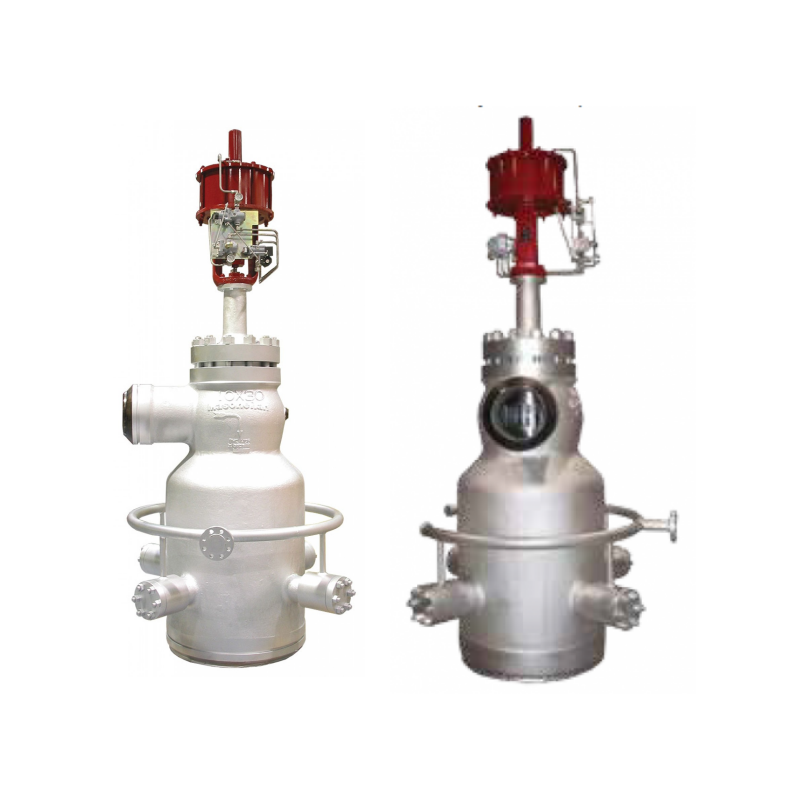

Masoneilan Steam Conditioning Valves SteamForm 84000 84003 Masoneilan DSH Series Desuperheaters

The Masoneilan SteamForm 84000 and 84003 steam conditioning valves are engineered to deliver precise steam control in the most demanding industrial environments. By combining pressure reduction and desuperheating functions within a single valve body, they offer a cost effective and space saving solution compared to traditional multi valve systems.

These valves are built to handle high pressure and high temperature steam service, making them ideal for power generation plants, refineries, petrochemical complexes, and other industries that rely on reliable steam control. With decades of engineering experience, Masoneilan has developed the SteamForm range to meet the growing needs of modern steam systems.

The SteamForm 84000 and 84003 series are recognized for their robust construction, excellent controllability, and long term performance in severe service applications. Whether it is turbine bypass, boiler bypass, or process steam conditioning, these valves are trusted by operators worldwide.

The SteamForm 84000 and 84003 incorporate advanced design elements that ensure reliable operation and easy maintenance:

• Integrated valve design that combines pressure reduction and desuperheating
• Optimized spray nozzle technology for accurate cooling water injection
• High turndown ratio up to 50 to 1 for wide load variability
• Low noise and reduced vibration due to streamlined internal flow path
• Modular trim for easier inspection and servicing
• Corrosion and erosion resistant materials for long life
• Proven performance in severe service and high temperature steam applications

The Masoneilan SteamForm valves are used in a wide range of industries where steam conditioning is critical:

1. Power Generation
   • Turbine bypass systems
   • Boiler bypass control
   • Start up and shut down steam conditioning
2. Refining and Petrochemicals
   • Process steam conditioning
   • High pressure and high temperature regulation
3. Industrial Steam Systems
   • Steam desuperheating for production facilities
   • Load balancing in steam distribution networks
4. Pulp and Paper Industry
   • Stable and reliable steam pressure and temperature control for production processes

Q1: What is the main difference between the SteamForm 84000 and 84003?
The 84000 uses external spray nozzles for cooling water injection while the 84003 integrates a spray ring for severe service applications.

Q2: Can these valves be used in turbine bypass systems?
Yes, both models are widely applied in turbine bypass and boiler bypass applications.

Q3: What turndown ratio can be achieved with these valves?
They can achieve a turndown ratio of up to 50 to 1, allowing stable performance across a wide range of steam loads.

Q4: Which industries typically use these valves?
The SteamForm valves are most commonly used in power plants, refineries, petrochemical facilities, pulp and paper production, and other industries requiring precise steam control.

Q5: How is the cooling water injection controlled?
Cooling water injection is typically regulated by a separate control valve that is managed through a feedback loop from temperature sensors.

Looking for a reliable supplier of Masoneilan SteamForm 84000 and 84003 steam conditioning valves?

Dr. Industry Group Co Ltd
Website: www.shgongboshi.com
Email: info@shgongboshi.com

Phone: +86-15000725058

We offer a full range of valve positioners, control valves, and steam conditioning solutions. Contact our technical team today for product details, quotations, or customized solutions.
