Aplicação: | manipulação | Características: | O robô colaborador é |
---|---|---|---|
Circunstância: | Novo | Garantia: | 1 ano, 1 ano |
Poder: | 350 | Tensão: | 220 |
Indústrias aplicáveis: | Fábrica dos hotéis, das lojas do vestuário, das lojas do material de construção, da usina, das ofici | Peso (quilogramas): | 78 |
Lugar da sala de exposições: | Reino Unido, Estados Unidos, Itália, França, Alemanha, Índia | Que parte-inspeção video: | Fornecido |
Relatório de teste da maquinaria: | Fornecido | Tipo de mercado: | Produto ordinário |
Garantia de componentes do núcleo: | 1 ano | Componentes do núcleo: | Caixa de engrenagens, motor |
Nome do produto: | braço do cobot de 6 linhas centrais para o braço robótico colaborador do robô élfico do cnc do cobot | Número de linha central: | linha central 6 |
Carga útil máxima: | 12 quilogramas | Alcance máximo: | 1000 milímetros |
Repetibilidade da pose (ISO 9283): | ±0.05mm | Material: | Liga de alumínio |
Avaliação da proteção: | IP54/IP66 | Posição de montagem: | Teto/parede do assoalho |
Tempo da vida: | 30000h | Porto: | Shanghai |

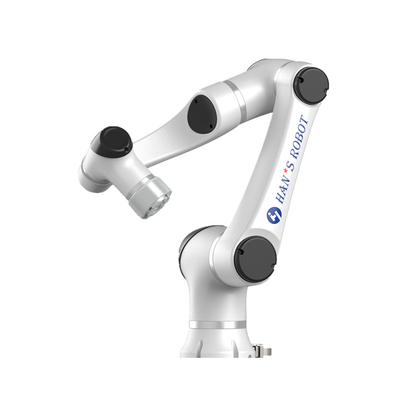

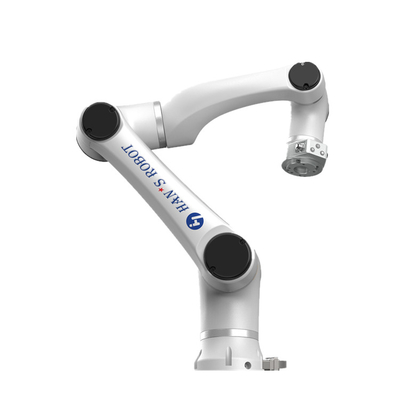

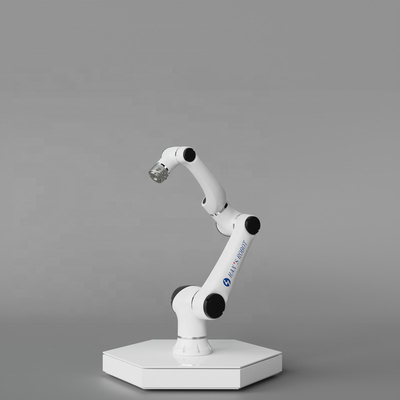

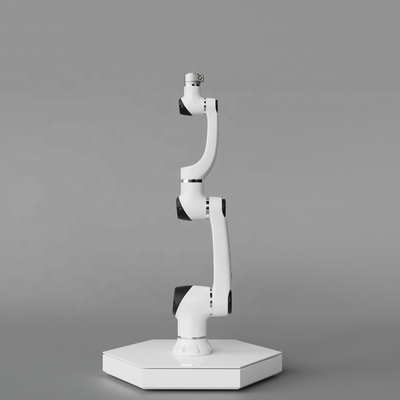

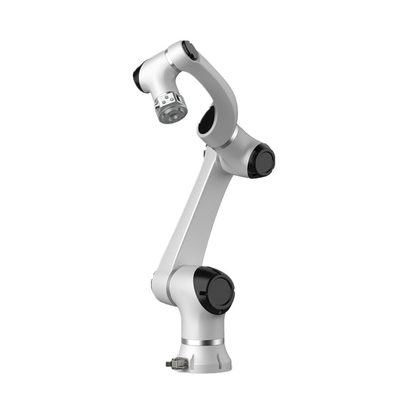

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Main Specifications:
Maximum reach:1000 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
Product Name | 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm |
Application | 6 axis cobot arm ; cobot cnc; elfin robot collaborative robotic arm |
Model | Elfin 10 |
Robot Arm | |
Maximum reach | 1000 mm |
Maximum payload | 12 kg |
Pose repeatability (ISO 9283) | ± 0.05 mm |
Number of axes | 6 |
Mounting position | Floor/ Ceiling/Wall |
Lifetime | 30000h |
Weight | 17 kg |
Protection rating | IP54 |
Standard | CE, TUV,KSc |
Power consumption | 200W |
Material | Aluminum alloy |
Ambient temperature | 0-45°C |
Environment humidity | 20-85%(No condensation) |
Power supply | DC 48V |
Protocol | CAN bus |
A1 | ±135° |
A2 | ±135° |
A3 | ±135° |
A4 | ±135° |
A5 | ±135° |
A6 | ±135° |
Controller | |
Size | 536mm*445mm*491mm |
Weight | 20Kg |
Cable length | 5m |
Colour | Black |
Protocol | Ethernet,Modbus-RTU/TCP |
Power | 100-240V/AC,50-60HZ |
Protection rating | IP54 |
I/O port | 16 in/16 out |
Teach pendant | |
Size | 355mm*235mm*54mm |
Weight | 1.8Kg |
Screen | 12 inch Resistive LCD touch screen |
Cable length | 4m |
Protection rating | IP54 |
Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
