Lugar de origem: | CHINA |
---|---|
Marca: | ABB |
Número do modelo: | IRB6700-300/2.7 |
Quantidade de ordem mínima: | 1 grupo |
Preço: | US $48501 |
Detalhes da embalagem: | UNS conjunto robótico total industrial do braço do robô industrial da linha central da linha central |
Tempo de entrega: | 30-60 dias do trabalho |
Termos de pagamento: | L/C, T/T, Western Union |
Habilidade da fonte: | 100 grupos/mês |
NOME: | Alcance de lustro 2700mm do robô e da carga útil 300Kg de solda da colheita do conjunto do braço do | Aplicação: | Conjunto que lustra escolhendo a soldadura |
---|---|---|---|
Carga útil: | 300kg | Alcance: | 2700mm |
Número de machados: | 6 | Material: | liga de alumínio |
Proteção: | STD: IP67. | Montagem: | Assoalho, invertido |
Posicione a repetibilidade: | 0.10mm | Controlador: | IRC5 único controlador montado do armário IRC5 PMC painel |

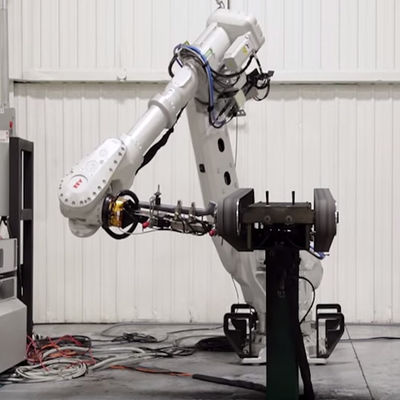

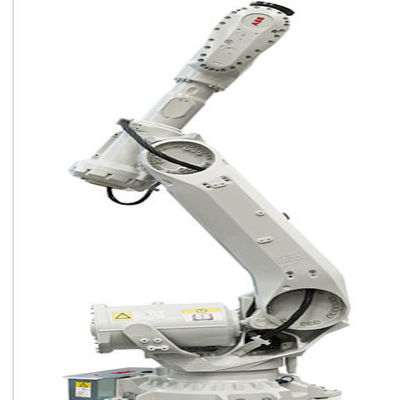

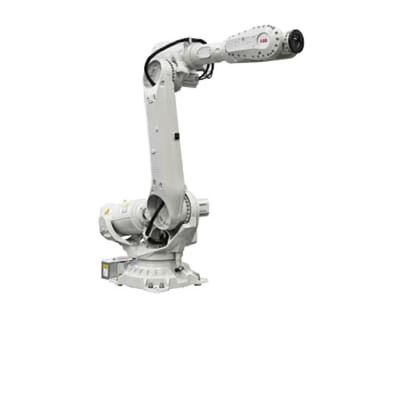

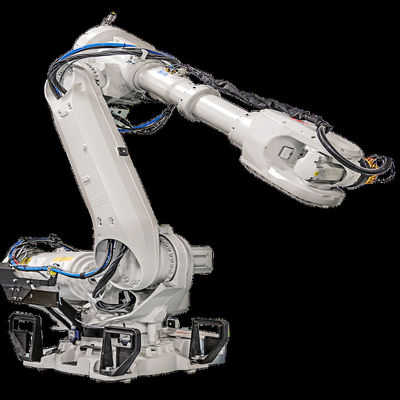

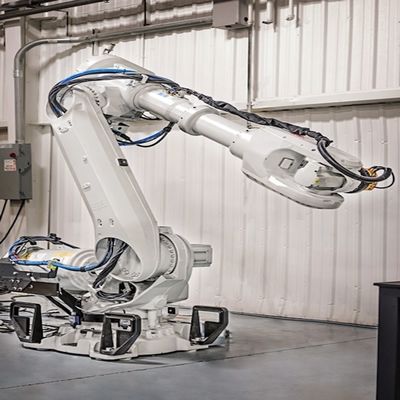

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding Robot and Payload 300Kg Reach 2700mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
