| Lugar de origem: | Guangdong, China |
|---|---|
| Marca: | Han's / Hans |
| Certificação: | CE |
| Preço: | $18,000.00/Sets >=1 Sets |
| Detalhes da embalagem: | Uma 6 do cobot colaborador barato E10L 10Kg de Hans do robô da linha central carga útil élfico e alc |
| Habilidade da fonte: | 1 parte/parte por Mês |
| Aplicação: | Segurando /Welding/CNC | Características: | Cobot de pouco peso |
|---|---|---|---|
| Circunstância: | Novo | Garantia: | 1 ano |
| Dimensão (L*W*H): | 80*80*60 | Poder: | 350 |
| Tensão: | 200-240V | Indústrias aplicáveis: | Fábrica dos hotéis, das lojas do vestuário, das lojas do material de construção, da usina, das ofici |
| Peso (quilogramas): | 85 | Lugar da sala de exposições: | Reino Unido, Estados Unidos, Itália, França, Alemanha, Índia |
| Que parte-inspeção video: | Fornecido | Relatório de teste da maquinaria: | Fornecido |
| Tipo de mercado: | Produto novo 2021 | Garantia de componentes do núcleo: | 1 ano |
| Componentes do núcleo: | Caixa de engrenagens, motor | Nome do produto: | robô colaborador barato de 6 linhas centrais para a solda do cobot |
| Machados controlados: | 6 | Carga útil do máximo: | 10kg |
| Repetibilidade: | ±0.1mm | Escala de trabalho máxima: | 1300mm |
| Temperatura: | 0-50 ℃ | Poder do I/O: | 24V 2A |
| Peso: | 42,5 QUILOGRAMAS | Classe do IP: | IP54 |
| Porto: | Shanghai |

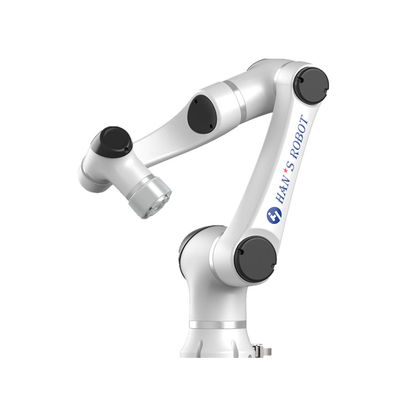

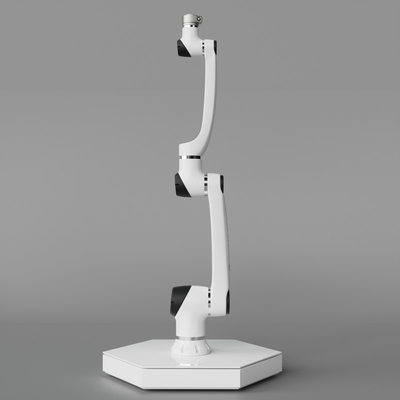

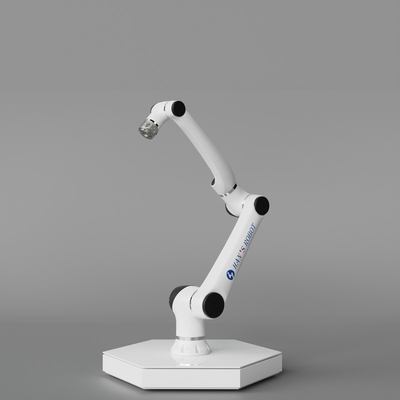

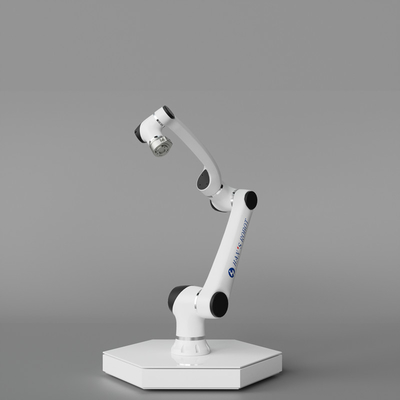

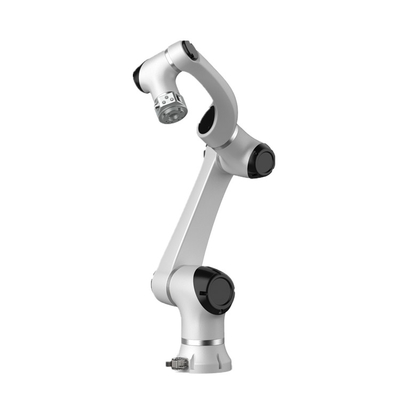

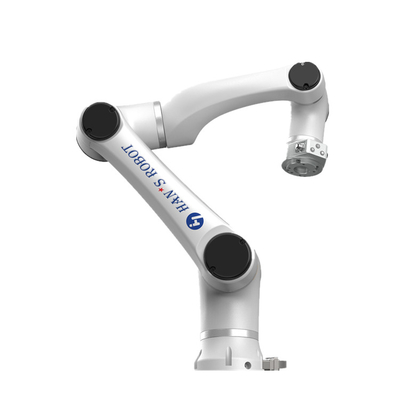

6 axis cheap collaborative robot Hans cobot Elfin E10L 10Kg payload and 1300mm working reach for cobot welding
Features
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines.Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
| Product Name | 6 axis cheap collaborative robot Hans cobot Elfin E10L 10Kg payload and 1300mm working reach for cobot welding |
| Weight | 42.5kg |
| Payload | 10kg |
| reach | 1300mm |
| power | 100W in typical cycle |
| joint range | ±360° |
| joint speed | J1-J4 180°/S J5-J6 200°/S |
| tool speed | 2m/s |
| repeatability | ±0.05mm/±0.03mm(under normal conditions) |
| degree of freedom | 6 |
| control box size | 536*445*319mm |
| end I/O port | digital input:3,digital output:3,analog input:2 |
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 |
| I/O source | 24V 2A |
| communication | TCP/IP/MODBUS |
| programming | graphical programming,remote process call |
| IP classification | IP54/IP66 |
| collaborative operation | 10 advanced configurations for safety |
| main material | aluminum alloy |
| working temperature | 0-50℃ |
| power input | 200-240V AC,50-60Hz |
| cable | cable to connect the control box:5m,cable to connect teach pendant: |
Hans Robot EIfin10L Introduction:
1.Swift delivery
